Spa Controls
Gecko code
Name & description
Price
Y Series
whatever the spa, this is your control system
- Each pack supports a keypad, heater, a 12 V AC light, and configurable relays (5 or 7, depending on model)
- Solid-state water flow detection: No pressure switch to adjust
- IPX5 rated waterproof design
- Preloaded configuration allows fast and easy installation
- in.touch WiFi module compatible
- 120/240 V convertible
- Each output voltage can be configured 120/240 V
- AMP, Quick Connect, JJM adaptor available
- Standard 2" heater
- Aeware keypad compatible
- Small footprint
Gecko code
9920-401397
HI LIMIT & REGULATION SENSOR FOR IN.YJ-HEAT RECOVERY - LENGTH 4FT
Gecko code
0612-221034-315
IN.YJ-2-RE-V2-GD1
Includes the temperature probe.
Gecko code
0610-221046-355

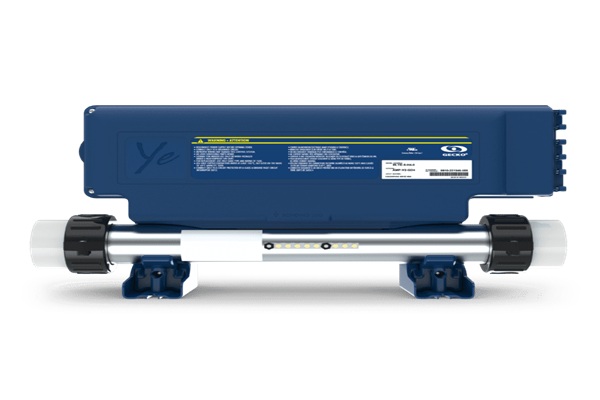

IN.YE-5-H4.0-AMP-V2-GD3
Aeware controller for spa. in.ye supports 5 configurable outputs, a 4kW heater and a standard 12V light. Ideal for entry level to mid-range spas with pump 1 with 1 or 2 speeds, pump 2 with 1 or 2 speed, blower or circ. pump or ozonator. Direct connection for Audio available. (the output voltage can be configured on the board). Works with keypads in.k200, in.k19, in.k8, in.k450, in.k600 static, in.k120 (auxiliary) and in.touch Wi-Fi module.
Gecko code
0611-221031-361
*IN.YT-7-H4.0-AMP-1-V2-GD3
Aeware controller for spa. in.yt supports 7 configurable outputs, a 4kW heater and a standard 12V light. Ideal for mid-range to high-end spas with up to 3 pumps, blower, circ. pump, ozonator(more configurations available, see documentation). Direct connection for Audio available. (the output voltage can be configured on the board). Works with keypads in.k200, in.k19, in.k35, in.k450, in.k600 static, in.k120 (auxiliary) and in.touch Wi-Fi module.
Gecko code
0610-221066-363
*IN.YE-5-H5.5-AMP-V2-GD3
Aeware controller for spa. in.ye supports 5 configurable outputs, a 5.5kW heater and a standard 12V light. Ideal for entry level to mid-range spas with pump 1 with 1 or 2 speeds, pump 2 with 1 or 2 speed, blower or circ. pump or ozonator. Direct connection for Audio available (the output voltage can be configured on the board). Works with keypads in.k200, in.k19, in.k35, in.k450, in.k600 static, in.k120 (auxiliary) and in.touch Wi-Fi module.
Gecko code
0610-300003

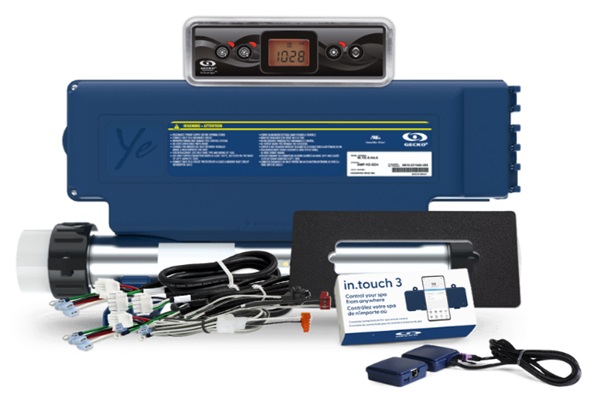

BUNDLE: IN.YE-5, IN.K450-3OP KEYPAD, CABLES
Spa pack: in.ye-5 (0610-221046-355)
Keypad: in.k450-3OP (BDLK4503OP)
Cables: 2 x dual spd AMP cable (95100519) & 2 x single spd AMP cable (95100517) & Light (9920-400489)
Adaptor plate (9917-102123)
Gecko code
0610-300004
BUNDLE: IN.YE-5, IN.K200-2OP KEYPAD, CABLES
Spa pack: in.ye-5 (0610-221046-355)
Keypad: in.k200-2OP (BDLK2002OP)
Cables: 1 x dual spd AMP cable (95100519) & 2 x single spd AMP cable (95100517) & Light (9920-400489)
Adaptor plate (9917-102053)
Gecko code
0610-300006

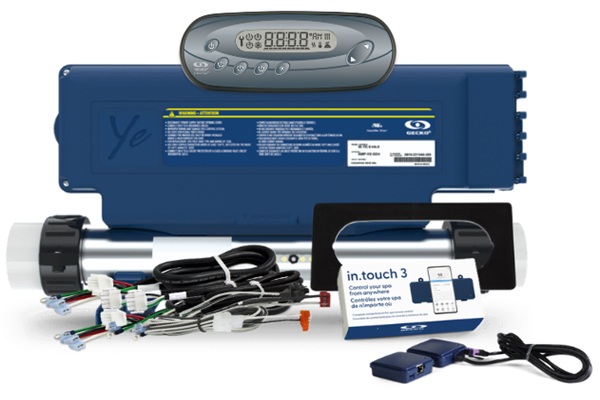

BUNDLE: IN.YE-5, IN.K8-3OP KEYPAD, CABLES
Spa pack: in.ye-5 (0610-221046-355)
Keypad: in.k8-3OP (BDLK83OP)
Cables: 2 x dual spd AMP cable (95100519) & 2 x single spd AMP cable (95100517) & Light (9920-400489)
Adaptor plate (9917-102122)
Gecko code

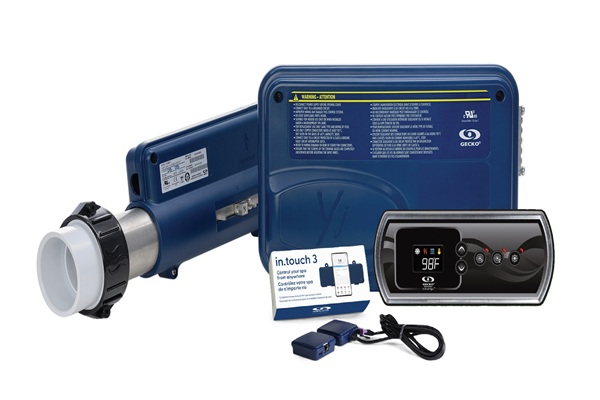

0612-300001
BDLYJ2K300 IN.YJ-2 IN.K300 CABLES
Spa pack: in.yj-2 (0612-221032-316)
Heater: 4kW (0613-421001)
Keypad: in.k300-1OP (BDLK3001OP)
Cables: AMP 2SPD receptacle (9920-401345), QC to QC dual speed (95100251), Light (9920-400489) and
white LED bulb (246AA0064)
k300 Adaptor plate (9917-10239)
2 x Mounting Bracket & screw kit (9920-101490)
Gecko code

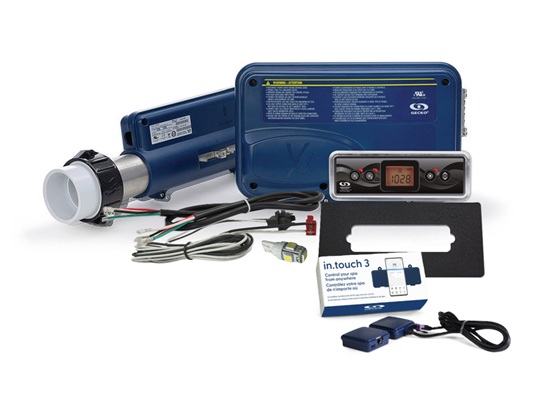

0612-300002
BDLYJ2K200 IN.YJ-2 IN.K200 CABLES
Spa pack: in.yj-2 (0612-221032-316)
Heater: 4kW (0613-421001)
Keypad: in.k200-1OP (BDLK2001OP)
Cables: AMP 2SPD receptacle (9920-401345),QC to QC dual speed (95100251), Light (9920-400489) and
white LED bulb (246AA0064)
k200 Adaptor plate (9917-102053)
2 x Mounting Bracket & screw kit (9920-101490)
Gecko code
0612-221030-286
IN.YJ-3-V2-GD1
Aeware controller for spa. in.yj supports 3 configurable outputs, and is compatible with the 4kW heater (sold separately) and a standard 12V DC light (6W max). Ideal for entry level spas with up to two loads. Direct connection for Audio available. (the output voltage can be configured on the board). Works with keypads in.k200, in.k19, in.k35, in.k450, in.k600 static, in.k120 (auxiliary) and in.touch Wi-Fi module.

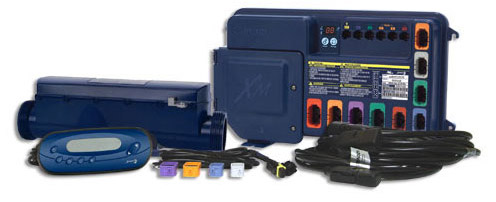

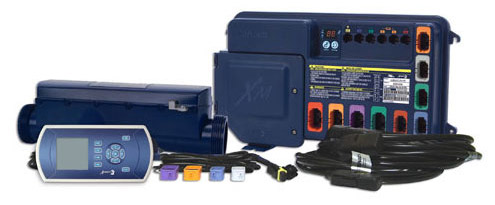

IN.XM
Mid-range spa pack platform
Most rugged spa pack platform ever developed for spa and hot tub manufacturers.
Our new and innovative in.xm spa pack platform includes allthe features and functions you need in a stunning new power box design that sets new standards with its superb combination of looks and functionality. With its waterproof enclosure & breakthrough connectors, in.xm boasts the highest water resistance ever designed in a pack, just one of a long list of innovative features that make in.xm the safest and most reliable spa pack platform ever offered to the industry.
Versatile and heater-”less”, in.xm can be wall-mounted or installed on its mounting base and comes with a perfect companion, our new in.therm intelligent remote water heating system.
• Power box display and buttons
• Light or CoolRays connector
• Accessory connector (in.pocket, in.terface, SpaWatch, etc.)
• General I/O connector (IR receiver*)
• in.keys main and aux. keypad connectors
• Connector for direct 120/240 vac 5 Amp output
(for in.play audio or video accessories)
• 4 connectors for outputs controlled by 4 independent
relays (for oz, cp, light, blower and any other
accessories) (120/240 vac 5 Amp)
• Pump output connector (for 15 amp single speed pump) (120/240 vac)
• 2 output connectors for pumps (rated for dual speed
pumps up to 20 amp at 240 vac only)
• Output connectors for in.therm remote heating system
(240 vac)
Gecko code
0601-221104
IN.XM2-8-1-2-K-K-B-K-O-K-R-GD1
Outputs: pump 1 with 1 or 2 speeds; pump 2 with 1 or 2 speeds; pump 3 with 1 speed; blower; ozonator; CP
Direct connection (in.link cables)
in.therm heater sold separately
Compatible keypads in.k450 and in.k600 graphic or static.
Replaces part number 0601-221030.

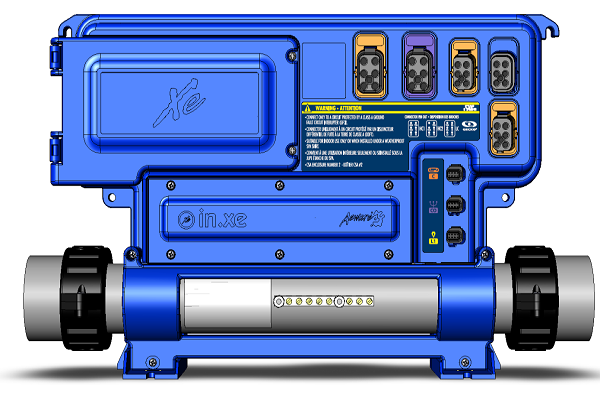

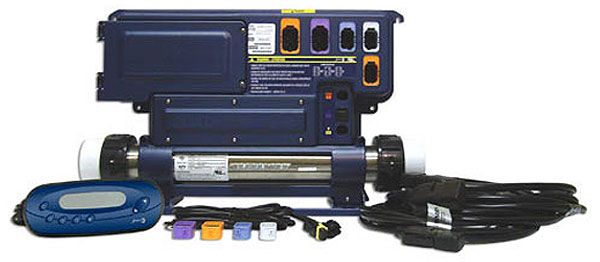

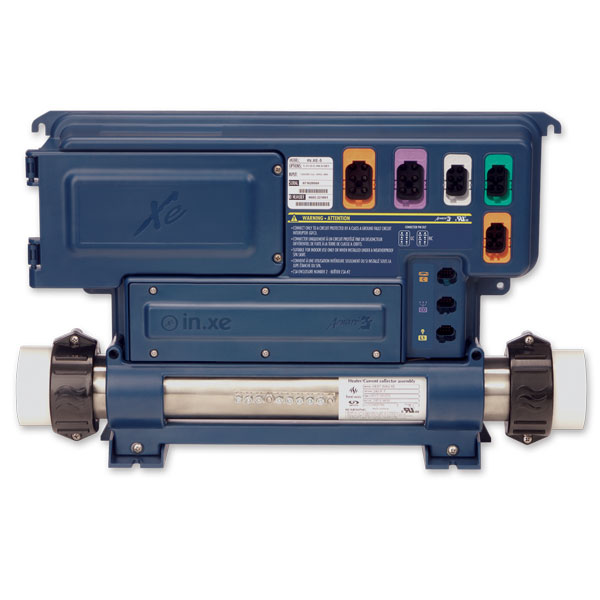

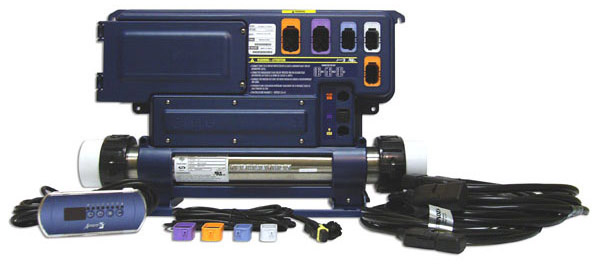

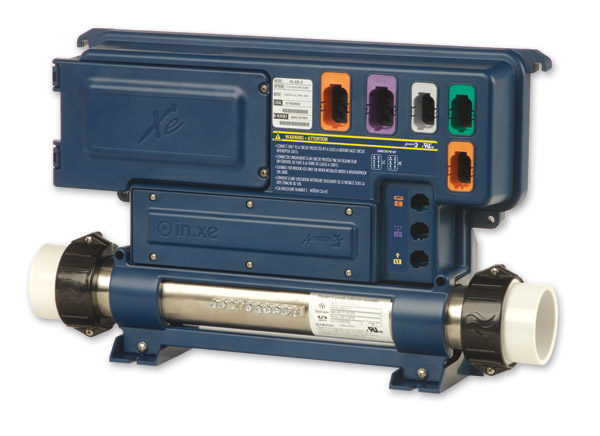

IN.XE
Innovative spa pack platform for entry level spas
The perfect system for entry level spas with Aeware by Gecko's
breakthrough features and signature design! The all new in.xe!
The perfect control system for entry level spas. In.xe combines Aeware by Gecko's in.pac series breakthrough features and signature design with a heat.wav integrated heater in optimal price/performance configurations for typical entry level spas
(dual pumps, dual pumps & blower, single pump or single pump & blower with key accessories).
• 2 high-current AC connectors:
Pump 1 - Pump 2
• 3 low-current AC connectors:
Relay controlled: Blower / Ozonator
Direct-to-line: In.power.210 power supply
• 3 low-voltage interface connections:
Keypad - Communication link - Light output
• Light output
• Typical spa configurations:
Dual pumps - Dual pumps and blower
Single pump - Single pump and blower
• Keypads:
in.k200 - in.k219 - in.k235 - in.k450
• heat.wav heater:
4kW @ 240v UL/CE
2kW @ 230v CE
1kW @ 120v UL
Gecko code
0602-221066-300
IN.XE-5-12-H4.0-1-2-K-K-D-60K-V2-GD1
Aeware controller for spa. in.xe with outputs, pump 1 with 1 or 2 speeds, pump 2 with 1 or 2 speeds, blower, or circ. pump and ozonator, direct connection, (the output voltage is decided by the in.link cable used) heater 4.0 kW, connector in.link, works with keypads in.k200, in.k19, in.k35, in.k450, in.k600 static
Gecko code
0602-221063-299
IN.XE-5-11-H4.0-1-2-K-K-D-60K-V2-GD1
Aeware controller for spa type in.xe with outputs, pump 1 with 1 or 2 speeds, pump 2 with 1 speed, blower, ozonator, direct connection, (the output voltage is decided by the in.link cable used) heater 4.0 kW, connector in.link, works with keypads in.k200, in.k19, in.k35, in.k450, in.k600 static

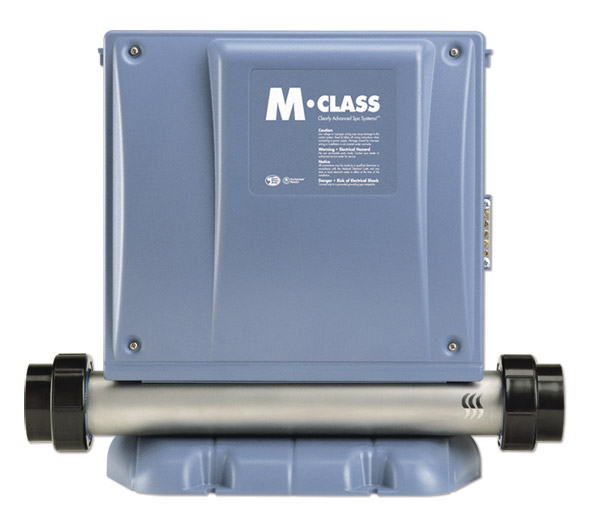

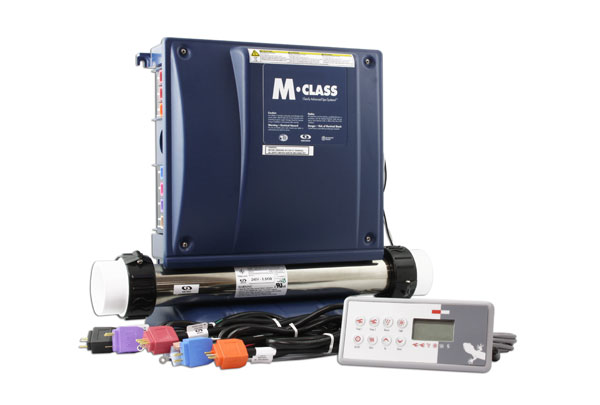

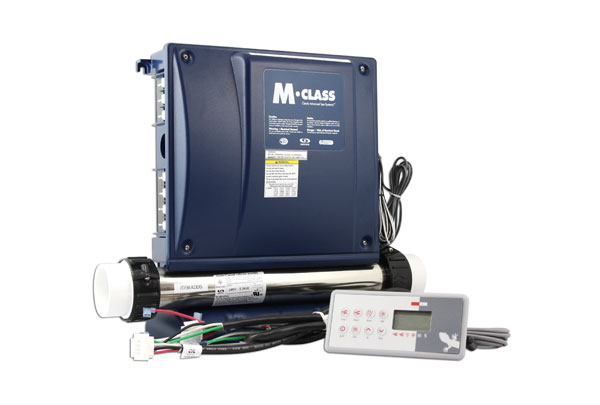

M-CLASS SPA SYSTEMS
MC-MP input
240 V only
MC-MP outputs
Pump 1 & 2 (dual-speed)
Optional pump 3
Blower
Optional circulation pump
Heater
Light
Ozonator
Fiber light
Opt. aux. outputs #1 & #2
Opt. AC lights #1 & #2
MC-MP features
Custom backlit LCD display
Digital temperature display
Sensor failure detection
Ozone management
Air channel clean-out
Programmable filter cycles
High-limit protection
Pressure switch failure detection
Current limiting option
Smart Winter Mode
Temp. accuracy within ± 1°F
Overtemp mode protection
Overtemp protect. on filter cycle
CoolRays compatible
Fiber light compatible
DJS-1 compatible (optional)
Real time clock (optional)
SpaWatch ready!
Pocket-tek ready!
And more!
Gecko code
3-74-7035
MC-MP-P122-P222-P312-B1-O1-CP1-NE-A11-A21-LS-H5.5-RTC-T2-AMP-SBD
Controller for M-CLASS or MSPA type with outputs: pump 1 with 2 speeds 240V, pump 2 with 2
speeds 240V, pump 3 with 1 speed 240V, blower 120V, ozonator 120V, circulation pump 120V (optional), internal fiber optic control 120V, (every output's voltage can be reconfigured), heater 5.5 kW, AMP connectors, works with TSC-8 (8 or 10 keys) or TSC-4 (8 or 10 keys) keypad
Gecko code
3-74-7036
MC-MP-P122-P222-P312-B1-O1-CP1-NE-A11-A21-LS-H5.5-RTC-T2-JJC-SBD
Controller for M-CLASS or MSPA type with outputs: pump 1 with 2 speeds 240V, pump 2 with 2 speeds 240V, pump 3 with 1 speed 240V, blower 120V, ozonator 120V, circulation pump (optional) 120V, internal fiber optic control 120V, (every output's voltage can be reconfigured), heater 5.5 kW, JJM connector works with TSC-8 (8 or 10 keys) or TSC-4 (8 or 10 keys) keypad
Gecko code
0201-300031
BOARD REPLACEMENT KIT FOR MSPA-MP-BF4
For all MSPA-MP-BFs systems, works with TSC-14 keypads
Gecko code
0201-300014
BOARD REPLACEMENT MSPA-MP-GE1
For all MSPA-MP Propak series works with TSC-4, TSC-8 or TSC-47 keypads (through jumpers)
Gecko code
0201-300045
BOARD REPLACEMENT KIT FOR MSPA-1 AND MSPA-4
Replaces most MSPA-1 & 4, transformer and probes included

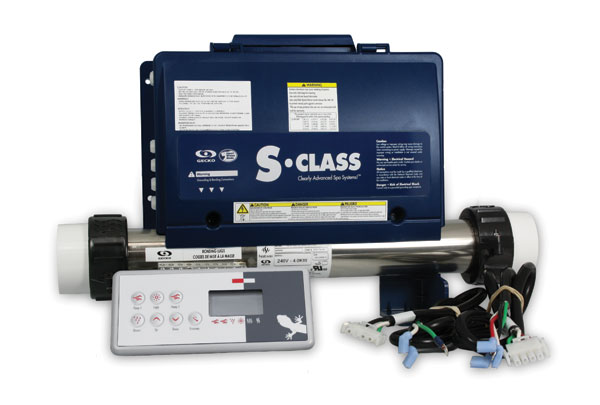

S-CLASS SPA SYSTEMS
SC-MP input
120 V
240 V
SC-MP outputs
Pump 1 (dual-speed)
Pump 2 (single-speed)
Blower (single intensity) (optional)
Circulation pump (optional)
Heater
Light
Ozonator
Fiber box
SC-MP features
Auto time-out on all outputs
3-digit LED display
Digital temp. display
Sensor failure detection
Ozone management
Air channel clean-out
Programmable filter cycles
High-limit protection
Pressure switch failure detection
Current limiting option
Smart Winter Mode
Temp. accuracy within ± 1°F
CoolRays compatible
Fiber light compatible
Overtemp protection
Filter cycle overtemp protection
and more!
Gecko code
3-72-7079
SSPA-1-P122-P212-O1-NE-LS-H4.0-JJM-PPD
Controller for spa S-CLASS type with outputs: pump 1 with 2 speeds 240V, pump 2 with 1 speed 240V, ozonator 120V, (every output's voltage can be reconfigured), heater 4kW, connector JJM, works with keypad TSC-9, TSC-18 or TSC-19

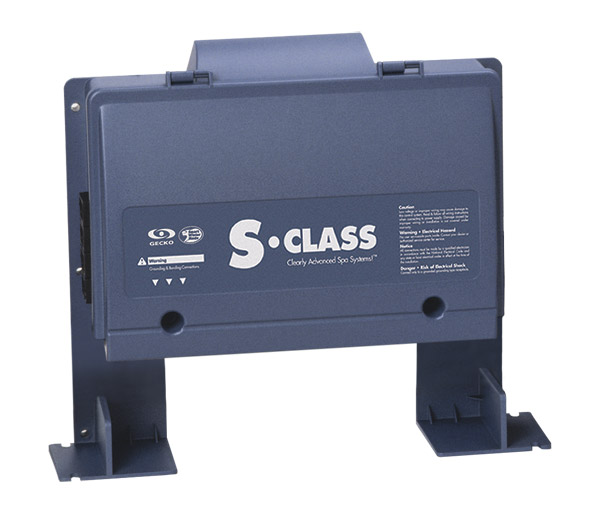

Gecko code
0202-205209
SC-MP-P121-P211-B1-01-CP1-NE-LS-HR-JJC-SBD1
Controller for spa S-CLASS type with outputs: pump 1 with 2 speeds 120V, pump 2 with 1 speed 120V, optional blower and circ pump 120V, ozonator 120V, (every output's voltage can be reconfigured), remote heater, connector JJM, works with keypad TSC-9, TSC-18, TSC-19 and TSC-35

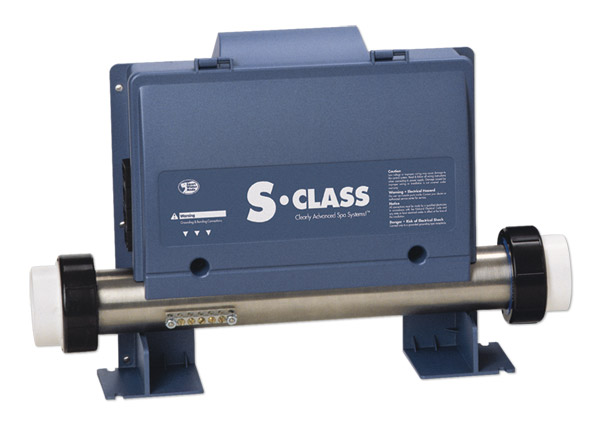

Gecko code

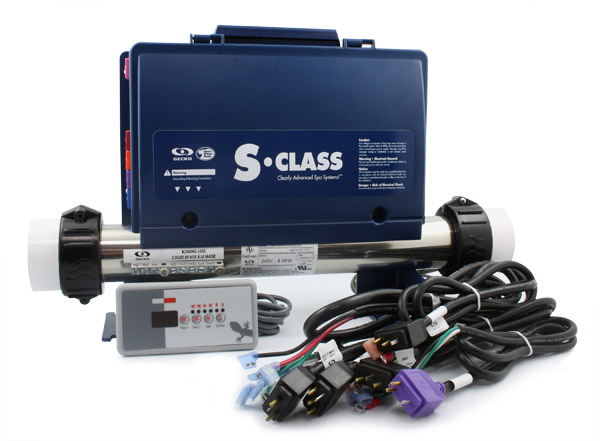

0202-205162
SC-MP-P122-P212-B1-CP1-01-AU11-H4.0-JJC-NE-SBD
Controller for spa S-CLASS type with outputs: pump 1 with 2 speeds 240V, pump 2 with 1 speed 240V, optional circ pump and blower 120V, ozonator 120V, (every output's voltage can be reconfigured), heater 4kW, connector JJM, works with keypad TSC-9, TSC-18, TSC-19 or TSC-35
Gecko code
0202-205163
SC-MP-P122-P212-B1-CP1-01-LCD-H4.0-AMP-SBD
Controller for spa S-CLASS, LCD option type with outputs: pump 1 with 2 speeds 240V, pump 2 with 1 speed 240V, optional circ. pump and blower 120V, ozonator 120V, (every output's voltage can be reconfigured), heater 4kW, connector AMP, works with keypad TSC-8-GE2 or TSC-52
Gecko code
0202-205160
SC-MP-P122-P212-B1-CP1-01-AU11-H4.0-LCD-JJM-SBD
Controller for spa S-CLASS, LCD option type with outputs: pump 1 with 2 speeds 240V, pump 2 with 1 speed 240V, optional blower 120V, optional circulation pump 120V, ozonator 120V, (every output's voltage can be reconfigured), heater 4kW, connector JJM, works with keypad TSC-8 or TSC-52
Gecko code
3-72-7078
SSPA-1-P122-P212-O1-NE-LS-H4.0-AMP-PPD
Controller for spa S-CLASS type with outputs: pump 1 with 2 speeds 240V, pump 2 with 1 speed 240V, ozonator 120V, (every output's voltage can be reconfigured), heater 4.0 kW, connector AMP, works with keypad TSC-9, TSC-18 or TSC-19

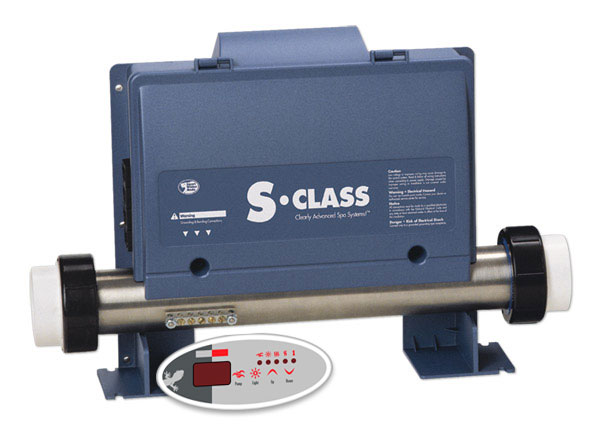

Gecko code
0202-205212
SC-CF-P12-O-CP-LS-H4.0-U-GE1
Controller for spa S-CLASS type with outputs: pump 1 with 2 speeds 240V, circulation pump 120V, ozonator 120V, (every output's voltage can be reconfigured), heater 4kW, no connector, works with keypad TSC-9, TSC-18 or TSC-19
Gecko code
0202-205215
SSPA-1-P122-P212-O1-NE-LS-H5.5-JJM-PPD
Controller for spa S-CLASS type with outputs: pump 1 with 2 speeds 240V, pump 2 with 1 speed 240V, ozonator 120V, (every output's voltage can be reconfigured), heater 5.5kW, connector JJM, works with keypad TSC-9, TSC-18 or TSC-19
Gecko code
0202-205214
0202-205162 with 5,5kw heater
Gecko code
0202-100038
Circuit Board S-Class 205162

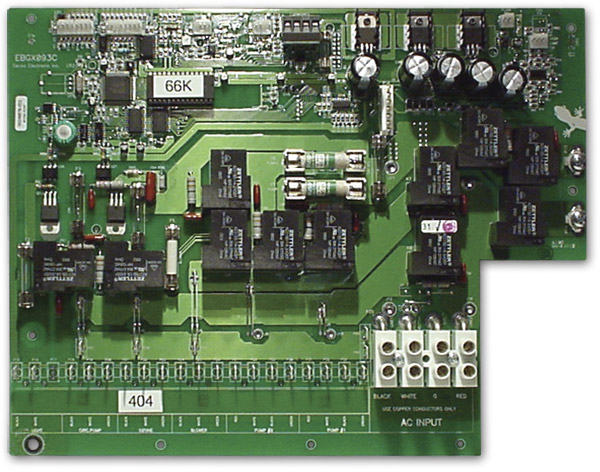

Gecko code
9920-200526
BOARD: TSPA-MP
Replace all TSPA-MP board 2 pumps, blower and ozonator
